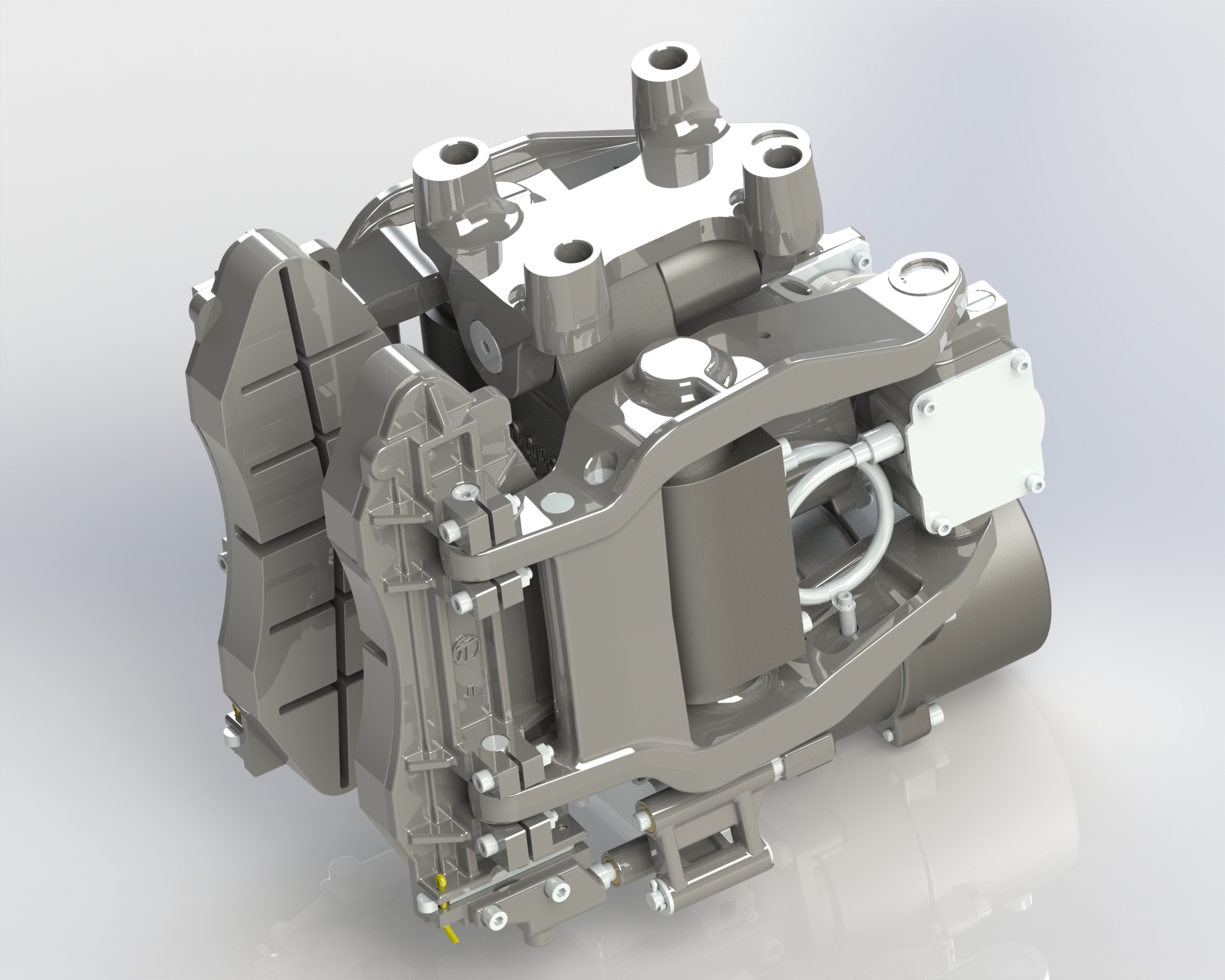

Destination: Brake bloc of the disc brake of railway rolling stock is intended for equipping on the electric trains, those are equipped with the brake discs, for traverse speed up to 160 kmph. Brake bloc is intended for creation of the double-sided pressure (with two brake pads) on the brake disc and for providing of the braking force with the purpose of deceleration or of complete stop of rolling stock.
Application: railway rolling stock
Note: TU 3020-569-05744521-2017
| Designation of parameter | Significance of the parameter for version | |||||
| 763.00.00.000 | -01 | -02 | -03 | -05 | -06 | |
| Pressure force on the disc (on one pad) by 0,38MPa, kN | 21,7 | 21,7 | 16 |
16 |
27,3 | 27,3 |
| Pressure force on the disc from action of parking brake (on one pad), kN | 13,6 | – | 13,6 | – | 17,2 | – |
| Advantage of the mechanism | 4,84 | 4,84 | 4,84 | 4,84 | 6,1 | 6,1 |
| Diameter of air-camera of the main brake, mm | 140 | 140 | 125 | 125 | 140 | 140 |
| Size of pads’ reduction for one actuation, no less than, mm | 0,3 | 0,3 | 0,3 | 0,3 | 0,3 | 0,3 |
| Size of wear compensation of the brake pads and of the brake disc, mm | 70 | 70 | 70 | 70 | 74 | 74 |
| Mass, kg | 108 | 86 | 108 | 86 | 105 | 82 |
