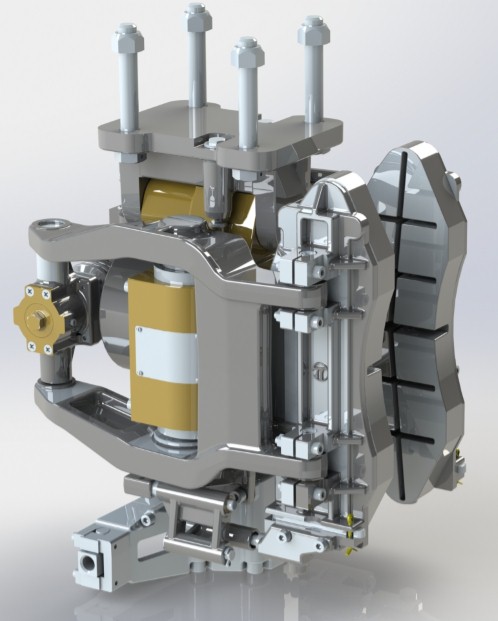

Destination: Brake bloc of the disc brake of railway rolling stock, is intended for equipping on the locomotive-drawn passenger cars with the system of disk brake and with the constructional speed 160 kmph. Brake bloc is intended for creation of the double-sided pressure (with two brake pads) on the brake disc and for providing of the braking force with the purpose of deceleration or of complete stop of rolling stock.
Application: railway rolling stock
Note: TU 3020-583-05744521-2022
| Designation of parameter | Significance of the parameter for version | |||||||
| 866.00.00.000 | -01 | -02 | -03 | -10 | -11 | -12 | -13 | |
| Pressure force on the disc (on one pad) by 0,38MPa, kN | 24,5 | 22,5 | 20,5 | 18,5 | 24,5 | 22,5 | 20,5 | 18,5 |
| Pressure force on the disc from action of hand parking brake with force 6400N (on one pad), kN | 43,5 | 43,5 | 43,5 | 43,5 | – | – | – | – |
| Advantage of the mechanism | 6,1 | 6,1 | 6,1 | 6,1 | 6,1 | 6,1 | 6,1 | 6,1 |
| Diameter of air-camera of the main brake, mm | 135 | 130 | 125 | 120 | 135 | 130 | 125 | 120 |
| Size of pads’ reduction for one actuation, no less than, mm | 0,3 | 0,3 | 0,3 | 0,3 | 0,3 | 0,3 | 0,3 | 0,3 |
| Size of wear compensation | 74 | 74 | 74 | 74 | 74 | 74 | 74 | 74 |
